Hytera
HM782
Quality Services
Over
40 years

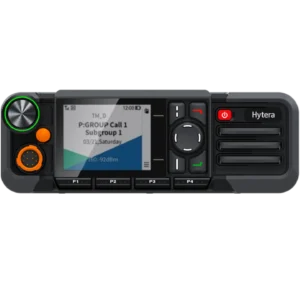

HM782 H-Series DMR Mobile Radio
The Hytera HM782 is a high-performance DMR mobile radio built for demanding fleet and field operations. As the flagship model in the H-Series mobile lineup, the HM782 delivers advanced functionality with loud, clear audio, extended range, and intuitive controls—all in a rugged, vehicle-ready design.
Equipped with a 2.4″ TFD-LCD display and full keypad, the HM782 supports a wide range of voice and data features, including GPS and gateway capabilities for expanded coverage and system integration. It’s ideal for teams that need seamless communication across locations and conditions.
With industry-leading audio performance and flexible installation, the HM782 keeps mobile workforces connected, informed, and operating efficiently wherever the job takes them.
Why Choose HM782?
Multi-System Flexibility
The HM782 can be deployed in Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II and Tier III Trunking, IP Multi-Site Connect, and DMR Simulcast Systems.
Greater Calling Flexibility
The HM782 supports Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), All Call (broadcast call to all radios, transmit only), and Telephone Calls (with connectivity to PSTN, PABX or SIP networks).
Clear and Bright Display
The HM782 features a 2.4-inch, 240×300 HD TFT- LCD display with an intuitive six-grid navigation interface with large type and icons. The display supports 262,000 colors, and is clearly visible in bright sunlight.
Enhanced Worker Safety
The HM782 radios are designed for worker safety with an easy access emergency button, emergency calling, and priority interrupt.
Louder and Clearer Audio
Hytera provides industry-leading audio quality through an optimized forward-facing loudspeaker and AI-based voice enhancement with deep learning ability that can accurately extract voice from noise in real time and decreases unwanted background noises as loud as 30db.
Enhanced GPS Location Tracking
The HM782 reports current location information to other radios, the dispatcher, or third-party applications in real time, enhancing the efficiency of visualized dispatch applications.
GPS data is transmitted during voice calls for immediate location targeting, and GPS data can be compressed to increase channel capacity and reduce hardware cost.
HM782 Key Features
| Feature | Specification |
|---|---|
| Frequency Range | UHF 350–470MHz, VHF 136–174MHz |
| Channel Capacity | 1,024 Channels (512 Analog, 512 Digital) |
| Zone Capacity | 64 Zones with 256 Channels per Zone |
| Channel Spacing | 12.5kHz / 20kHz / 25kHz |
| Operational Voltage | 13.6V ±15% |
| Current Drain | Standby: <0.5A Receive: <2.0A Transmit: 1W <3A, 5W <4A, 25W <8A, 45/50W <12A |
| Weight | 56.1oz (1,520g) |
| Dimensions | 2 7⁄16” x 6 1⁄32” x 7 7⁄16” (61.5 x 177 x 179mm) |
| Frequency Stability | ±0.5ppm |
| Antenna Impedance | 50Ω |
| Display | LCD 2.4”, 240×320, 262,000 colors, 10 rows |
| Bluetooth | BT 5.0 BLE + EDR |
| Encryption | Advanced end-to-end digital (128/256-bit) DMRA encryption |
| Encryption | Advanced end-to-end digital (128/256-bit) DMRA encryption |
